Mobile Spray Rigs - Foam and Protective Coatings



Bolair's Mobile Spray Rig


Drive up and spray convenience from North America's Fluid Handling Specialists. Trust Bolair's 33 years of fluid handling experience to bring you a mobile spray system that's built for the demands of your business. We've teamed up with Graco - the industry's leader in quality and leading technologies - to bring you a mobile workstation of the highest quality, function and durability.
Our Rig building facilities in Milton, Ontario - Edmonton, Alberta and British Columbia are state of the art and designed for high efficiency to deliver the highest quality rigs at the lowest possible price!  We will work with you to design the package that is right for your needs and application.
  • 24, 26, 28 or 32ft Gooseneck Trailers
  • 12, 16 and 20ft Tag Along Trailers
  • Custom Box Truck - "Bring your truck to us and we will outfit it!"
  • Configurations for Spray Foam, Coatings and your unique application

Click For Our Spray Rig Brochure









Tag Along Trailer

  • 12 ft, 16 ft or 20 ft Custom Premium trailer
  • Holds one or two sets of material
  • Outfitted with one proportioner
  • Easy to pull with smaller trucks
  • Ideal entry-level trailer
  • Ample headroom: 8 ft (2.4 m) interior height
  • Double-axle rated for 10,200 lb, 12,000 lb or 14,000 lb GVWR (Gross Vehicle Weight Rating)

Gooseneck Trailer

  • 24 ft, 26 ft or 28 ft Custom Premium trailer
  • Holds two or three sets of material
  • Can be outfitted with one or two proportioners
  • Easy to maneuver
  • For residential and commercial projects
  • Ample headroom: 8 ft (2.4 m) interior height
  • Double-axle rated for 14,000 lb GVWR

Box Truck

  • 18 ft to 28 ft box
  • Holds two or three sets of material
  • Can be outfitted with one or two proportioners
  • Easiest to maneuver
  • Better for projects where parking space is limited
  • Weight load dependent on selected truck size

Features

All Bolair Spray Rigs include:

  • Your choice of Graco proportioner(s) either hydraulic, electric or air-driven

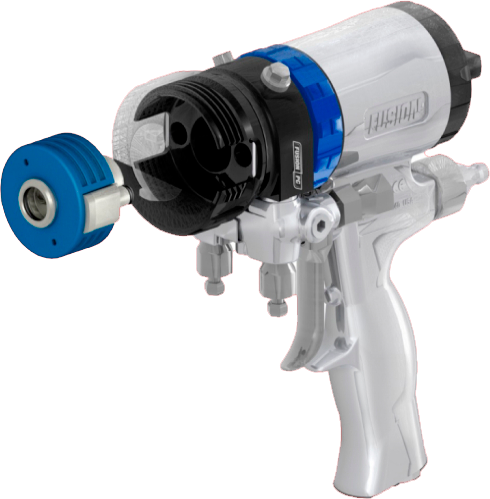

  • Your choice of Graco spray gun
  • 25 kW to 85 kW diesel generator
  • Your choice of air equipment
    • Rotary screw compressor (40 cfm) integrated with 40 kW generator, or Rotary screw compressor (140 cfm) integrated with 30 kW generator
    • 5 hp to 25 hp industrial grade two stage compressor (19 cfm to 109 cfm)
    • All air systems include installation and plumbing, high temperature refrigerated air dryer, regulators, quick disconnects and correct sizing for application
  • Heated hose – 2000 psi up to 7250 psi, electric heat trace and heated glycol options
  • Hose hatch – allows you to keep the main doors closed and maintain ambient temperature inside trailer
  • Safety chains and electric breakaway brake system that applies brakes on your trailer if it comes loose from the hitch
  • Proper ventilation – engineered louver system keeps generator from overheating
  • Colour-coded drum braces
  • Insulated partition wall between utility room and cabin separates generator from proportioner – reducing noise during operation
  • Electrical system with breaker panel
  • Hose hanger – 410 ft (125 m) capacity
  • 3/8 in (0.794 cm) plywood walls with fiberglass panels – easy to clean
  • Double 3/4 in (1.9 cm) plywood flooring under generator (trailers only)
  • Heavy-duty 8 in (20.3 cm) main beam construction (trailers only)
  • Two ABC approved fire extinguishers
  • First aid kit
  • Eye wash station
  • Martech® system for fresh air supply

Options

  • Workbench with heavy-duty vise
  • Industrial-grade steel cabinets
  • Under cabinet lighting
  • Choice of feed pump system
  • Band heater with thermostat
  • Rooftop air conditioning unit
  • Chain restraint system for drums
  • Machine recirculation system
  • Gun recirculation system
  • Drum lids
  • Drum mixer
  • Man door between production room and utility room (Trucks only)
  • In-wall space heater

Designed for spraying. Built to last.

Bolair offers a full line of mobile spray rigs, all built and equipped for the task at hand, and backed by warranty.

Insulated for better ambient temperature control and better yields

Because they’re insulated, Bolair Mobile Spray Rigs help control temperatures surrounding your A and B materials. In cold weather, it’s easier to get materials up to spray temperatures. In warm weather, air conditioning helps prevent material overheating and expanding drums, and keeps humidity at acceptable levels. In short, by keeping materials at temperatures closer to manufacturers’ recommendations, you have better control of the reaction between A and B materials, which leads to better results.

Insulation also

  • Acts as a sound barrier
  • Adds structural integrity to the trailer

Built solid to support equipment and materials

  • Heavy-duty 8” I-beam trailer construction with support studs on 16-inch centres for added durability
  • Double-axle rated for 10,200 lb, 12,000 lb or 14,000 lb GVWR
  • Engineered to hold two or three sets of material, a generator, a compressor plus one or two proportioners
  • Rugged trailer design handles extreme job environments
  • All equipment is properly secured so it stays in place

Backed by warranty

  • The trailer investment is backed with a 3 year limited warranty
  • Graco and Bolair equipment is backed by a 1 year standard warranty

Variable and fixed ratio proportioners available for coatings rigs.

Quality genset brands such as Kubota, John Deere and Perkins 25 kW to 85 kW

Rotary screw air compressor integrated with a generator saves valuable floor space.

Martech® system provides grade D quality breathable air
