Transfer Pumps

Transfer Pumps

Transfers pumps are a core piece of equipment that's used in the spray foam installation industry. They're the first step in the mixing process and are responsible for extracting A and B materials from their respective barrels and transporting them to the proportioner. Additionally, they're used in any protective spray coating job that uses polyurea, such as construction reconditioning, automotive, and flooring.

Graco manufactures an exceptional line of drum pumps that are built with maximum maneuverability and reliability in mind. This brand is the gold standard in fluid handling equipment and quality shows in every component. Their consistent flow rates guarantee high performance, and their connectivity with proprietary Reactor 3 fluid handling systems allows seamless integration with other equipment.

Pneumatic Pumps for Steady Extraction

Air-powered, high pressure transfer pumps are one of the most reliable pump types for spray foam applications. Unlike piston pumps and hydraulic pumps, there is no reliance on moving parts or fluid displacement.

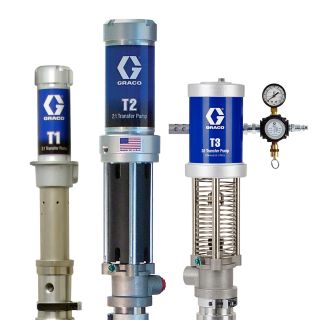

Graco has multiple styles of cordless drum pumps for your operation. The T series is an industry staple with various models available, including:

  • T1: The earlier rendition of Graco transfer pumps, the T1 has a modest maximum continuous output of 2.5 gpm and comes in a 2:1 fluid/air ratio.
  • T2: With a slightly higher ratio of 2.25:1 and a maximum output fluid pressure of 405 psi, the T2 is built for thicker fluid
  • T3: The T3 builds upon the T2 and has the same stainless steel lower pump but with an upgraded Merker air motor and a 3:1 ratio for the highest viscosity fluids.
  • T4: As Graco's most advanced transfer pump, the T4 incorporates ProConnect technology. This allows the user to separate the lower barrel pump from the motor, resulting in quick changeover rates when multiple lower pumps are utilized.

In addition to the T series, Graco offers a 1:1 Fast Flo pump and the E series, an ultra-quiet, electrically powered variation of the T series.

Order Your Transfer Pump from Bolair Today

For over 40 years, Bolair has been providing the protective coatings industry with high-quality fluid-handling equipment. We're committed to helping you find the ideal transfer pump for your industry. Browse our products and contact us today to place your order.

View as List Grid

Items 1-10 of 18

Page
per page
Set Descending Direction

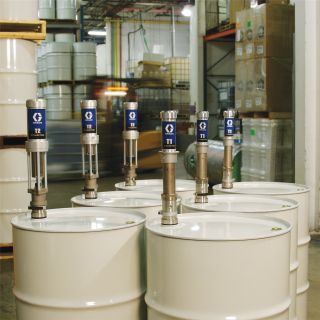

  1. 2:1 Ratio T1 Transfer Pump 256200
    $2,450.00
    Graco's family of transfer pumps maintain performance in any environment.
  2. Carbon Steel T3 Transfer Pump 24Z834
    $2,160.00
    Transfer Pumps are required to move A and B materials to the Reactor Spray Systems.
  3. Complete T1 Supply Pump System with 2:1 Pressure Ratio 247955
    $6,100.00
    Graco's family of transfer pumps maintain performance in any environment.
  4. 2:1 Ratio T2 Transfer Pump 295616
    $3,350.00
    Graco's family of transfer pumps maintain performance in any environment.
  5. Husky 1050 Aluminum 1 in (25.4 mm) NPT Air Operated Double Diaphragm Pump, Standard Aluminum Center Section, S/S Seats, S/S Balls & PTFE Diaph 647673
    $2,480.00
    The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
  6. Complete T2 Supply Pump System with 2:1 Ratio Piston Pump and 10 ft Supply Hose 246898
    $7,090.00
    Graco's family of transfer pumps maintains performance in any environment.
  7. Complete T2 Plural Component Supply Pump System 246081
    $7,860.00
    Graco's family of transfer pumps maintains performance in any environment.
  8. Husky 515 Diaphragm Pump 246484
    $2,020.00
    The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
  9. Husky 515 Diaphragm Pump with Drum Riser Tube 246366
    $2,050.00
    The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
  10. T1 Supply Pumps (2) with Supply Hoses 247956
    $5,410.00
    Graco's family of transfer pumps maintain performance in any environment.
