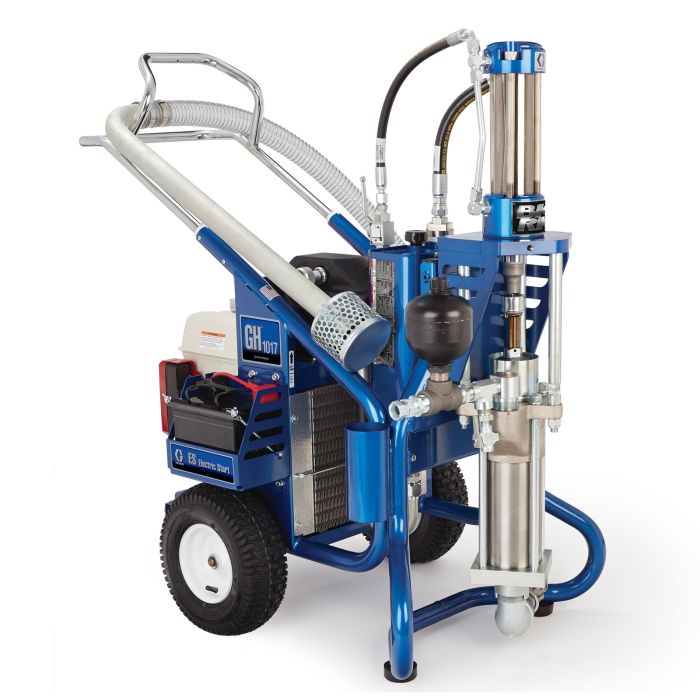

GH 1017ES Big Rig Gas Hydraulic Sprayer, Bare 16U277

In stock
SKU
16U277
$40,110.00
Quick Overview
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 1017ES can get the job done.

High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around.

  • Honda® Engine with Electric Start
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
    • Back-up Pull Start
    • High-capacity, 12 Volt 18 Amp Charging System
  • Heavy-Duty Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 4 gallon hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tires
    • Enamel painted steel tubing – corrosion protection
    • Multi-function design converts to skid mount in seconds
  • Xtreme Pump
    • QuikChange pump section
    • Time-tested durability and performance
    • Long-life XtremeSeal and leather packings
    • Heavy-duty piston rod for long life
    • QuickAccess intake valve removes easily for fast repairs
  • Additional Features
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
    • Large diameter siphon hose
More Information
Maximum Working Pressure (psi)1000
Fluid Inlet Size (in)2
Fluid Outlet Size (in) 1-1/2
Overall Height (in)49
Overall Length (in)43
Overall Width (in)28
Weight (lb)473
Maximum Working Pressure (bar)70
Overall Height (cm)124
Overall Length (cm)109
Fluid Inlet Size (cm)5.08
Overall Width (cm)71
Weight (kg)215
Maximum Flow Rate (L/min)62.5
Fluid Outlet Size (cm)3.81
Power Rating (cc)390
