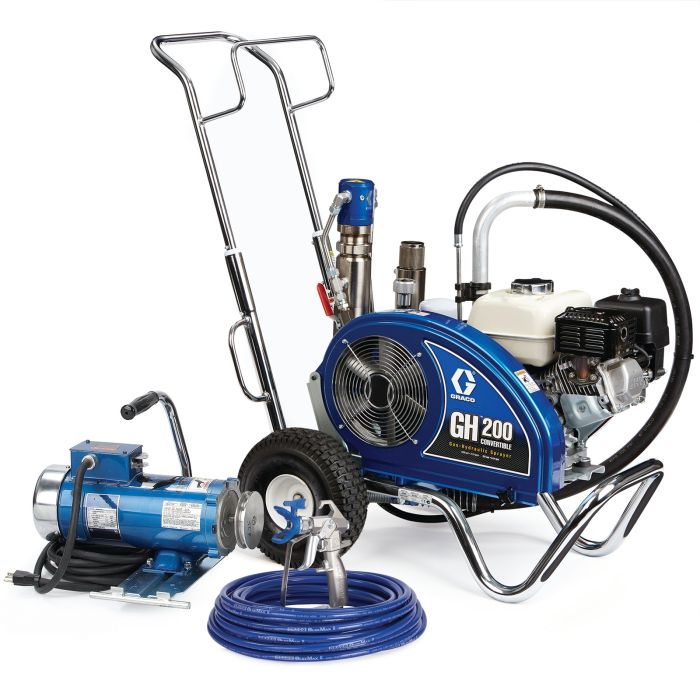

GH 200 Convertible Standard Series Gas Hydraulic Airless Sprayer with Electric Motor Kit 24W926

In stock
SKU
24W926
$14,540.00
Quick Overview
The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

The GH 200 Convertible is the solution for medium to large jobs where proven hydraulic power is demanded to get the job done. With the ability to change out the pump lower and convert to electric power without tools, you can be assured that you have the most versatile sprayer on the market today.
  • Endurance Chromex Piston Pump
    • Lasts 2X longer than the next leading brand
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • High-Efficiency Hydraulic Motor
    • Rock-solid performance time after time keeps you up and running
    • Faster, more responsive changeover
    • O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
    • Fewer moving parts mean less maintenance and longer life
  • High-Capacity Cooling System
    • Innovative design allows the pump to run cooler and more efficiently
    • Hydraulic reservoir is tapered on the bottom
    • Provides easier and more thorough fluid changes
    • Cooling fins on reservoir deflect heat away from sprayer
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filter design won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Rugged, Durable Cart Design
    • Thick chrome over welded steel withstands rugged environments
    • Full pneumatic wheels absorb impacts and vibrations
    • Retractable handle doubles as coiled hose storage
    • Tilts on its nose for service in the field
  • Electric Motor Kit
    • Indoor and outdoor use
    • Quickly swap the gas engine for an electric motor in seconds – without tools
  • Ready to Work
    Includes everything you need to get spraying:
    • Contractor Airless Spray Gun
    • RAC X SwitchTips and Guard
    • 50 feet of BlueMax II Airless Hose
More Information
Maximum Working Pressure (psi)3300
Fluid Inlet Size (in) 1-5/16
Fluid Outlet Size (in) 3/8
Maximum Hose Length (ft)300
Maximum Tip Size 1 Gun - Electric Motor (in)0.031
Maximum Tip Size 1 Gun (in)0.047
Maximum Tip Size 2 Guns (in)0.034
Maximum Tip Size 2 Guns - Electric Motor (in)0.017
Maximum Tip Size 3 Guns (in)0.027
Maximum Tip Size 4 Guns (in)0.023
Maximum Tip Size (in)0.047
Overall Height (in)39.5
Overall Length (in)41
Overall Width (in)24
Weight (lb)160
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)100.3
Overall Height (mm)1003
Overall Length (cm)104.1
Overall Length (mm)1041
Fluid Inlet Size (cm)3.334
Fluid Inlet Size (mm)33.34
Overall Width (cm)61
Overall Width (mm)610
Weight (kg)73
Maximum Flow Rate (L/min)8.1
Maximum Hose Length (m)92
Maximum Tip Size (cm)0.1194
Maximum Tip Size (mm)1.1938
Maximum Tip Size 1 Gun (cm)0.1194
Maximum Tip Size 1 Gun (mm)1.1938
Fluid Outlet Size (cm)0.375
Fluid Outlet Size (mm)3.75
Maximum Tip Size 2 Guns (cm)0.0864
Maximum Tip Size 2 Guns (mm)0.8636
Maximum Tip Size 3 Guns (cm)0.0686
Maximum Tip Size 3 Guns (mm)0.6858
Power Rating (cc)160
Maximum Tip Size 4 Guns (cm)0.0584
Maximum Tip Size 4 Guns (mm)0.5842
