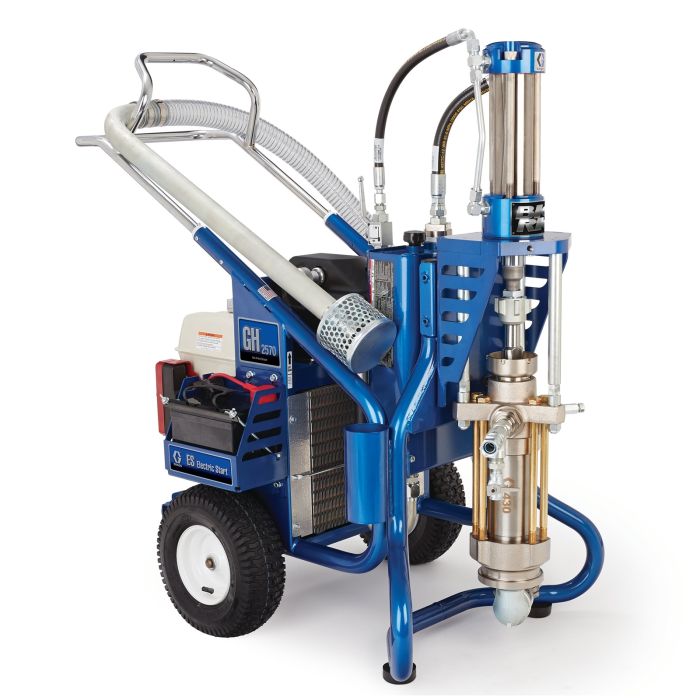

GH 2570ES Big Rig Gas Hydraulic Sprayer, Big 250 System 16U776

In stock
SKU
16U776
$39,600.00
Quick Overview
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 2570ES can get the job done.
  • Honda® Engine with Electric Start
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
    • Back-up Pull Start
    • High-capacity, 12 Volt 18 Amp Charging System
  • Heavy-Duty Graco Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 4 gallon hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tires
    • Enamel painted steel tubing - corrosion protection
    • Multi-function design converts to skid mount in seconds
  • Xtreme Pump
    • QuikChange pump section
    • Time tested durability and performance
    • Long life XtremeSeal™ and leather packings
    • Heavy-duty piston rod for long life
    • QuikAccess intake valve removes easily for fast repairs
  • Ready-To-Spray Big 250 System
    • Configured with 250 feet of pressure-rated hose, gun, tip extensions, and all the fittings you will need
  • Additional Features
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
    • Large diameter siphon hose
More Information
Maximum Working Pressure (psi)2500
Maximum Tip Size (in) Variable
Maximum Working Pressure (bar)172
Maximum Working Pressure (kPa)17200
Maximum Flow Rate (L/min)26.5
Power Rating (cc)390
