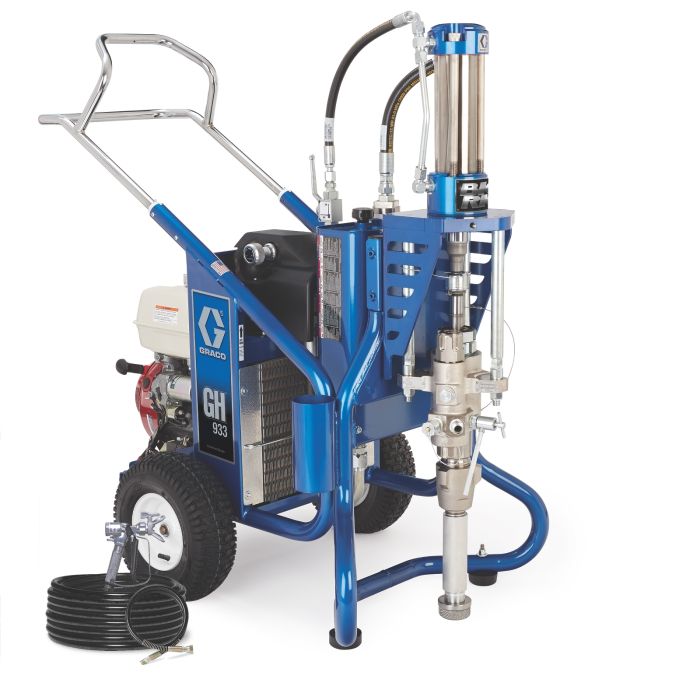

GH 933 Big Rig Gas Hydraulic Sprayer, Complete 16U282

In stock
SKU
16U282
$28,710.00
Quick Overview
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 933 can get the job done.
  • Honda® Engine
    • 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
    • Contractor preferred engine with Oil Alert
  • Heavy-Duty Hydraulic System
    • Faster, more responsive changeover
    • O-ring sealed to eliminate leaks
    • High-precision pressure control
    • No hydraulic reset button needed
    • Durable hydraulic lines for long life
  • Heavy-Duty Cooling System
    • Large 4 gallon hydraulic reservoir
    • Return line hydraulic filter extends life
    • No special hydraulic fluid needed
    • Proven cooler and blower system
    • Easy to use drain plug
  • Rugged, Heavy-Duty Steel Frame
    • Easy-roll tubed pneumatic tires
    • Enamel painted steel tubing – corrosion protection
    • Multi-function design converts to skid mount in seconds
  • Xtreme Pump
    • QuikChange pump section
    • Time-tested durability and performance
    • Long-life XtremeSeal and leather packings
    • Heavy-duty piston rod for long life
    • QuickAccess intake valve removes easily for fast repairs
  • Ready-To-Spray Complete System
    • Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
  • Additional Features
    • Lockable pressure control knob
    • Grounding wire for safety with solvent materials
    • Large diameter siphon hose
More Information
Maximum Working Pressure (psi)7250
Fluid Inlet Size (in) 1-1/4
Fluid Outlet Size (in) 3/4
Maximum Hose Length (ft)50
Maximum Tip Size 1 Gun (in)0.053
Maximum Tip Size (in)0.065
Weight (lb)438
Maximum Working Pressure (bar)500
Maximum Working Pressure (kPa)50000
Fluid Inlet Size (cm)3.175
Fluid Inlet Size (mm)31.75
Weight (kg)199
Maximum Flow Rate (L/min)9.5
Maximum Hose Length (m)15
Maximum Tip Size (cm)0.1651
Maximum Tip Size (mm)1.651
Maximum Tip Size 1 Gun (cm)0.1651
Maximum Tip Size 1 Gun (mm)1.651
Fluid Outlet Size (cm)1.905
Fluid Outlet Size (mm)19.05
Power Rating (cc)390
