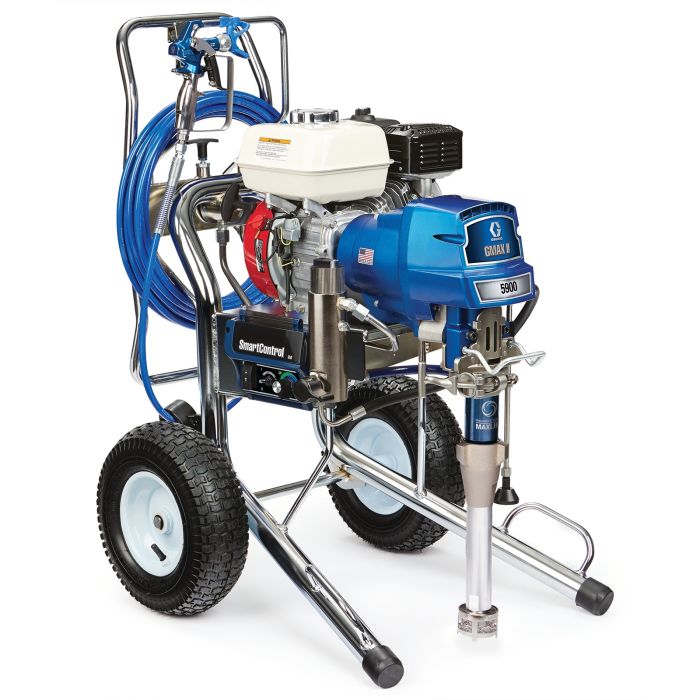

GMAX II 5900 ProContractor Series Gas Airless Sprayer 17E832

In stock
SKU
17E832
$14,490.00
Quick Overview
With a 200cc Honda engine and the ability to spray up to 1.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.

Work Smarter, Finish More Jobs. Graco GMAX ProContractor Series gas-powered airless paint sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Repack the pump in minutes with the new QuikPak Cartridge System
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear
    • Repack pump in minutes with new QuikPak cartridge repair system
  • ProConnect 2 Pump Replacement System
    • Pump swaps in 1-minute or less – no tools, pins or parts to lose
    • Eliminate costly downtime
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Handles the widest range of coatings with the most consistent fan pattern
    • Lowest dead band at any pressure
  • WatchDog Pump Protection System
    • Automatically prevents pump damage if material supply is too low
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC
  • Additional Features:
    • Easy Out Pump Filter
    • Heavy-Duty Prime Valve
    • LED Display
    • Rugged, Durable Cart Design
More Information
Maximum Working Pressure (psi)3300
Fluid Inlet Size (in) 1-5/16
Fluid Outlet Size (in) 1/4
Hose Inlet Diameter (in) 1/4
Maximum Tip Size 1 Gun (in)0.043
Maximum Tip Size 2 Guns (in)0.029
Maximum Tip Size 3 Guns (in)0.023
Maximum Tip Size (in)0.043
Overall Height (in)38
Overall Length (in)32.7
Overall Width (in)24.4
Weight (lb)160
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)96.5
Overall Height (mm)965
Overall Length (cm)83.1
Overall Length (mm)831
Fluid Inlet Size (cm)3.334
Fluid Inlet Size (mm)33.34
Overall Width (cm)62
Overall Width (mm)620
Weight (kg)73
Maximum Flow Rate (L/min)6.06
Maximum Tip Size (cm)0.10922
Maximum Tip Size (mm)1.0922
Maximum Tip Size 1 Gun (cm)0.10922
Maximum Tip Size 1 Gun (mm)1.0922
Fluid Outlet Size (cm)0.635
Fluid Outlet Size (mm)6.35
Hose Inlet Diameter (cm)0.635
Hose Inlet Diameter (mm)6.35
Maximum Tip Size 2 Guns (cm)0.0737
Maximum Tip Size 2 Guns (mm)0.737
Maximum Tip Size 3 Guns (cm)0.0584
Maximum Tip Size 3 Guns (mm)0.584
Power Rating (cc)200
