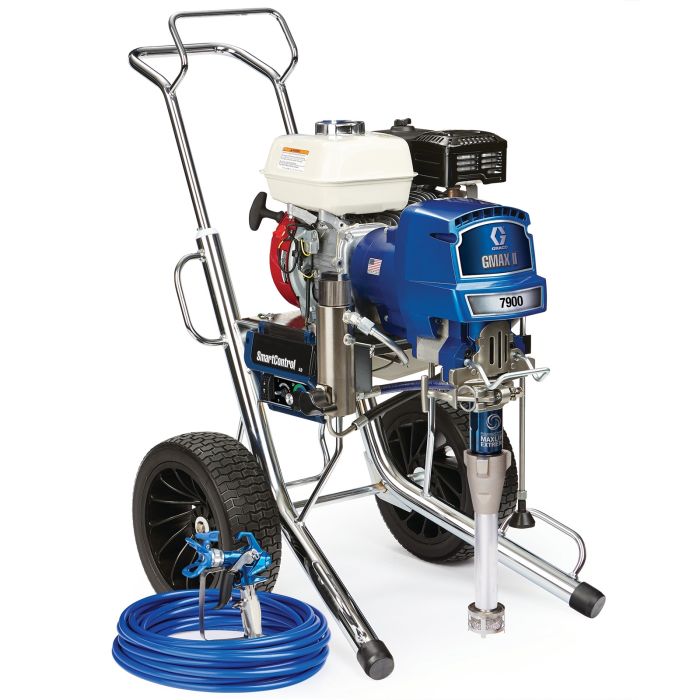

GMAX II 7900 IronMan Series Gas Airless Sprayer 17E838

In stock
SKU
17E838
$15,480.00
Quick Overview
Offering 35% more performance than the GMAX II 5900, the GMAX II 7900 is Graco's largest gas mechanical sprayer.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Offering 35% more performance than the GMAX II 5900, the GMAX II 7900 is Graco's largest gas mechanical sprayer. These units can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.

Beyond Jobsite Tough. Graco IronMan Series gas-powered airless paint sprayers provide superior power & durability to handle the most brutal and demanding conditions typically found on large commercial and industrial job sites.

  • Endurance Vortex MaxLife Extreme Piston Pump
    • The longest life
    • Breakthrough Vortex Rotating Rod Technology
    • Extreme rod extends pump rod life by 3X
    • Oversized passages for high velocity flow to rotate piston for even wear
    • 6X more gallons sprayed between repacks
    • Graco exclusive abrasion-resistance composite delivers the most durable wear surface
    • Repack pump in minutes with QuikPak cartridge repair system
  • ProConnect 2 Pump Replacement System
    • Pump swaps in 1-minute or less – no tools, pins or parts to lose
    • Eliminate costly downtime
  • Flat Proof Tires
    • Never Have a Flat Again
    • Tires can’t be punctured by nails, screws, or any sharp debris
  • Crushproof Inlet Strainer
    • Durable Filtration
    • Stands up to harsh impacts to maintain filtering and flow
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Handles the widest range of coatings with the most consistent fan pattern
    • Lowest dead band at any pressure
  • WatchDog Pump Protection System
    • Automatically prevents pump damage if material supply is too low
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC
  • Additional Features:
    • Easy Out Pump Filter
    • Heavy-Duty Prime Valve
    • LED Display
    • Rugged, Durable Cart Design
More Information
Maximum Working Pressure (psi)3300
Fluid Inlet Size (in) 1-5/16
Fluid Outlet Size (in) 3/8
Hose Inlet Diameter (in) 1/4
Maximum Tip Size 1 Gun (in)0.048
Maximum Tip Size 2 Guns (in)0.035
Maximum Tip Size 3 Guns (in)0.027
Maximum Tip Size 4 Guns (in)0.023
Maximum Tip Size (in)0.048
Overall Height (in)40.5
Overall Length (in)38.1
Overall Width (in)24.4
Weight (lb)157
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)102.9
Overall Height (mm)1029
Overall Length (cm)96.8
Overall Length (mm)968
Fluid Inlet Size (cm)3.334
Fluid Inlet Size (mm)33.34
Overall Width (cm)62
Overall Width (mm)620
Weight (kg)71
Maximum Flow Rate (L/min)8.33
Maximum Tip Size (cm)0.1219
Maximum Tip Size (mm)1.219
Maximum Tip Size 1 Gun (cm)0.1219
Maximum Tip Size 1 Gun (mm)1.219
Fluid Outlet Size (cm)0.9525
Fluid Outlet Size (mm)9.525
Hose Inlet Diameter (cm)0.635
Hose Inlet Diameter (mm)6.35
Maximum Tip Size 2 Guns (cm)0.0889
Maximum Tip Size 2 Guns (mm)0.889
Maximum Tip Size 3 Guns (cm)0.0686
Maximum Tip Size 3 Guns (mm)0.686
Power Rating (cc)200
Maximum Tip Size 4 Guns (cm)0.0584
Maximum Tip Size 4 Guns (mm)0.584
