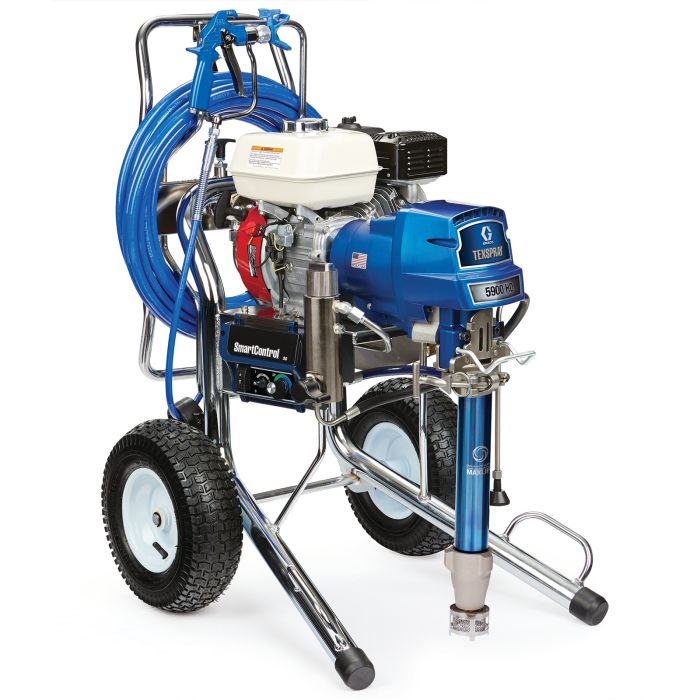

TexSpray 5900 HD ProContractor Series Gas Airless Sprayer 17E840

In stock
Quick Overview
The GMAX II 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

The GMAX II 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility. Spray more square footage in a day and increase your productivity with all texture finishes as well as the wide range of primers and paint.

Work Smarter, Finish More Jobs. GMAX II HD ProContractor Series airless texture sprayers are designed to deliver improved speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved joist conditions with extremely quiet operation
    • Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • LED Display
    • Easy-to-read display provides quick reference to show:
      • Pressure read-out
      • Job/lifetime/gallon counter
      • Self-diagnostics
  • Honda® GX Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • Additional Features:
    • Rugged, Durable Cart Design
    • Heavy-Duty Prime Valve
    • Easy Out Pump Filter
    • WatchDog Pump Protection System
More Information
Maximum Working Pressure (psi)3300
Fluid Inlet Size (in) 1-5/16
Fluid Outlet Size (in) 3/8
Hose Inlet Diameter (in) 3/8
Maximum Tip Size 1 Gun (in)0.043
Maximum Tip Size 2 Guns (in)0.029
Maximum Tip Size 3 Guns (in)0.023
Maximum Tip Size 4 Guns (in)0.019
Maximum Tip Size (in)0.043
Overall Height (in)40.5
Overall Length (in)37.7
Overall Width (in)24.4
Weight (lb)164
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)102.9
Overall Height (mm)1029
Overall Length (cm)95.8
Overall Length (mm)958
Fluid Inlet Size (cm)3.334
Fluid Inlet Size (mm)33.34
Overall Width (cm)62
Overall Width (mm)620
Weight (kg)75
Maximum Flow Rate (L/min)6.06
Maximum Tip Size (cm)0.10922
Maximum Tip Size (mm)1.0922
Maximum Tip Size 1 Gun (cm)0.10922
Maximum Tip Size 1 Gun (mm)1.0922
Fluid Outlet Size (cm)0.9525
Fluid Outlet Size (mm)9.525
Hose Inlet Diameter (cm)0.9525
Hose Inlet Diameter (mm)9.525
Maximum Tip Size 2 Guns (cm)0.07366
Maximum Tip Size 2 Guns (mm)0.7366
Maximum Tip Size 3 Guns (cm)0.05842
Maximum Tip Size 3 Guns (mm)0.5842
Maximum Tip Size 4 Guns (cm)0.04826
Maximum Tip Size 4 Guns (mm)0.4826
