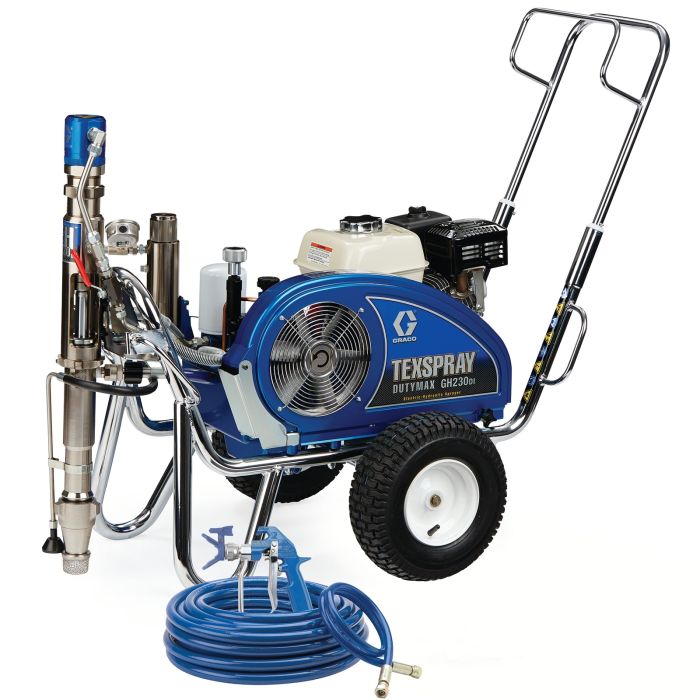

TexSpray DutyMax GH 230DI Standard Series Convertible Gas Hydraulic Airless Sprayer 24W943

Name: TexSpray DutyMax GH 230DI Standard Series Convertible Gas Hydraulic Airless Sprayer 24W943
SKU: 24W943
Price: 15900 CAD
Availability: InStock

In stock

SKU

24W943

$15,900.00

Quick Overview

When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Details

When your job requires maximum productivity and versatility, turn to the DutyMax GH 230 HD sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Graco’s Standard Series of DutyMax HD gas hydraulic direct-immersion sprayers deliver everyday reliability and performance while easily handling the widest range of tip sizes, longer hose lengths more heavy duty materials such as plasters, elastomerics, fire retardants and liquid roofing solutions.

Endurance Pump
- The Most Reliable Pump
- Lasts 2X longer than the next brand
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
MaxFlo 2 with Pack-Out Protection
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
High-Efficiency Hydraulic Motor
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
Honda® GX Engine
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Out Pump Filter
- Easy Maintenance & Less Clogging
- Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
- Won’t collapse or get stuck with inside out filtering process
Heavy-Duty Prime Valve
- High-Pressure Dumping Capability
- Maintenance-free design
Durable Cart Design
- Rugged and Easy-to-Maneuver
- Withstands the tough jobsite conditions while absorbing impacts and vibrations
- Retractable handle doubles as coiled hose storage
Electric Motor Capability
- Indoor & Outdoor Use
- Quickly swap the gas engine for an electric motor in seconds, without tools
- Electric motor sold separately

More Information

More Information
Maximum Working Pressure (psi)	3300
Fluid Inlet Size (in)	1-5/16
Fluid Outlet Size (in)	3/8
Hose Inlet Diameter (in)	3/8
Maximum Hose Length (ft)	50
Maximum Tip Size (in)	0.053
Overall Height (in)	35.5
Overall Length (in)	47.7
Overall Width (in)	26.5
Weight (lb)	203
Maximum Working Pressure (bar)	227
Overall Height (cm)	90
Overall Length (cm)	121
Fluid Inlet Size (cm)	3.33
Overall Width (cm)	67
Weight (kg)	92
Maximum Flow Rate (L/min)	8.9
Maximum Hose Length (m)	15
Maximum Tip Size (cm)	0.1346
Fluid Outlet Size (cm)	0.9525
Hose Inlet Diameter (cm)	0.95
Power Rating (cc)	200
