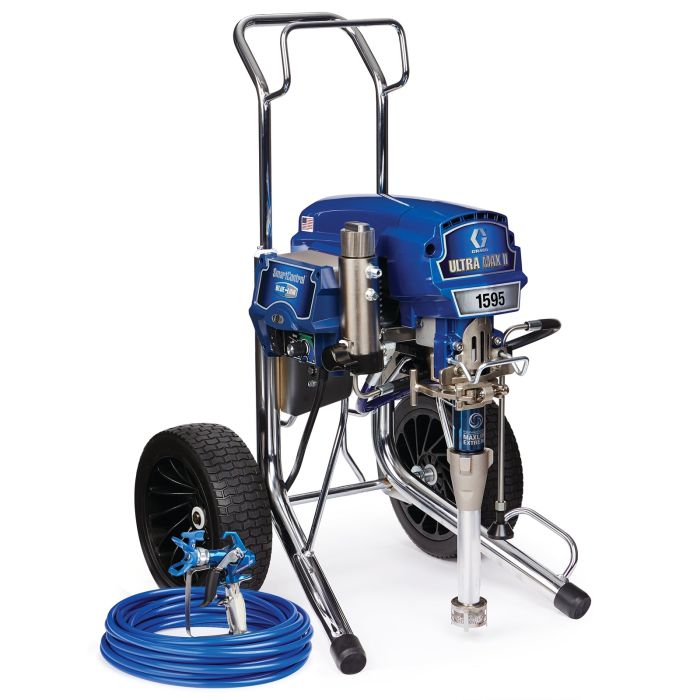

Ultra Max II 1595 IronMan Series Electric Airless Sprayer 17E594

In stock
SKU
17E594
Special Price $12,288.90 Regular Price $17,810.00
Quick Overview
The Ultra Max II 1595 IronMan Series is Graco’s largest electric sprayer with a 2.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

The Ultra Max II 1595 IronMan Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor to spray up to 1.5 gpm and BlueLink Job & Sprayer Management System plus rugged features like the Endurance Vortex MaxLife Extreme Pump, Flat Proof tires and Crushproof Inlet Strainer.

Beyond Jobsite Tough. IronMan Series electric airless sprayers are built to provide exceptional durability with additional features to routinely handle the daily demands and tough jobsite conditions found on large commercial and industrial jobs – day in and day out.

  • Endurance Vortex MaxLife Extreme Piston Pump
    • The longest life
    • Breakthrough Vortex Rotating Rod Technology
    • Graco exclusive abrasion-resistance composite delivers the most durable wear surface
    • Extreme rod extends pump rod life by 3X
    • Oversized passages for high velocity flow to rotate piston for even wear
    • 6X more gallons sprayed between repacks
    • Repack pump in minutes with QuikPak cartridge repair system
  • SmartControl 4.0 with ProGuard Protection System
    • Precision Pressure Control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
    • More info: graco.com/BlueLink
  • Flat Proof Tires
    • Never Have a Flat Again
    • Tires can’t be punctured by nails, screws, or any sharp debris
  • MaxPower Motor & Precision Advantage Drive
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • Pin-less design needs no tools
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Durable Filtration
    • Easy Out Filter provides easy maintenance and less clogging
    • Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
  • Additional Features
    • Heavy Duty Prime Valve
    • Rugged, Durable Cart Design
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC
More Information
Maximum Working Pressure (psi)3300
Fluid Outlet Size (in) 1/4
Hose Inlet Diameter (in) 1/4
Maximum Tip Size 1 Gun (in)0.039
Maximum Tip Size 2 Guns (in)0.029
Maximum Tip Size 3 Guns (in)0.023
Maximum Tip Size (in)0.039
Overall Height (in)38.5
Overall Length (in)26
Overall Width (in)24
Volume Per Cycle (cycles/gal)110
Weight (lb)132
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)97.8
Overall Height (mm)978
Overall Length (cm)66
Overall Length (mm)660
Overall Width (cm)61
Overall Width (mm)610
Weight (kg)60
Maximum Flow Rate (L/min)5.1
Maximum Tip Size (cm)0.0991
Maximum Tip Size (mm)0.9906
Maximum Tip Size 1 Gun (cm)0.0991
Maximum Tip Size 1 Gun (mm)0.9906
Fluid Outlet Size (cm)0.635
Fluid Outlet Size (mm)6.35
Hose Inlet Diameter (cm)0.635
Hose Inlet Diameter (mm)6.35
Maximum Tip Size 2 Guns (cm)0.0737
Maximum Tip Size 2 Guns (mm)0.737
Maximum Tip Size 3 Guns (cm)0.0584
Maximum Tip Size 3 Guns (mm)0.584
