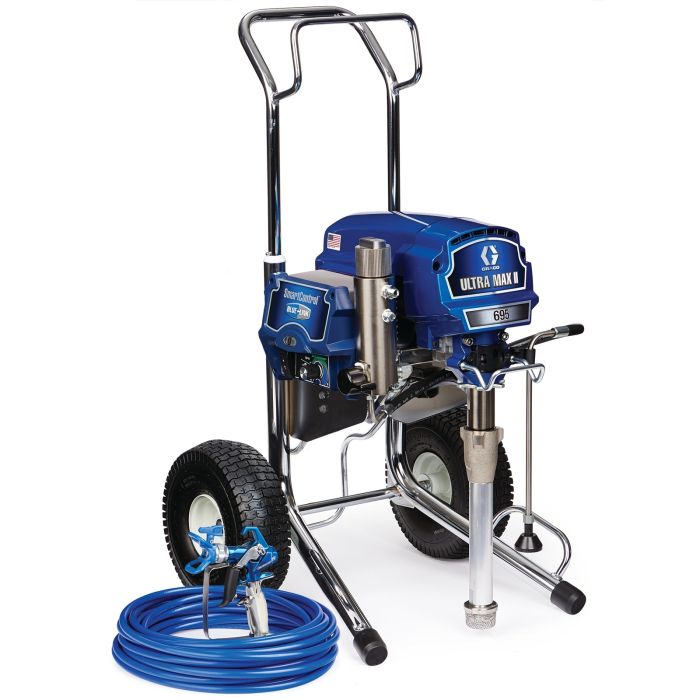

Ultra Max II 695 Standard Series Electric Airless Sprayer, Hi-Boy 17E574

In stock
SKU
17E574
Special Price $5,126.70 Regular Price $7,430.00
Quick Overview
The Ultra Max II 695 Standard Series Hi-Boy electric airless sprayer provides dependable performance with features that include a 2.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

The Ultra Max II 695 Standard Series Hi-Boy electric airless sprayer provides dependable performance with features that include a 2.0 hp brushless DC motor, industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the Contractor PC gun and much more.

Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.

  • Endurance Chromex Piston Pump
    • Lasts 2X Longer than competing pumps
    • Repack the pump in minutes with the new QuikPak Cartridge System
    • Faster cleaning with the QuikAccess intake foot valve
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • BlueLink Job & Sprayer Management App
    • Streamline Your Business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
    • More info: graco.com/BlueLink
  • MaxPower Motor
    • Get more work done
    • Proven performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
  • Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation
    • Lifetime Drive Train Warranty
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Easy Out Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filtering process ensures a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
  • Durable Cart Design with Kickstand
    • Withstands rugged environments
    • Design allows for easy, one-person bucket changes
    • Retractable handle doubles as hose storage
    • Kickstand for easy one person bucket changes
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info: graco.com/ContractorPC
More Information
Maximum Working Pressure (psi)3300
Fluid Outlet Size (in) 1/4
Hose Inlet Diameter (in) 1/4
Maximum Tip Size 1 Gun (in)0.031
Maximum Tip Size 2 Guns (in)0.023
Maximum Tip Size (in)0.031
Overall Height (in)38.75
Overall Length (in)26
Overall Width (in)22.5
Volume Per Cycle (cycles/gal)226
Weight (lb)94
Maximum Working Pressure (bar)228
Maximum Working Pressure (kPa)22800
Overall Height (cm)98.4
Overall Height (mm)984
Overall Length (cm)66
Overall Length (mm)660
Overall Width (cm)57.2
Overall Width (mm)572
Weight (kg)43
Maximum Flow Rate (L/min)3.6
Maximum Tip Size (cm)0.0787
Maximum Tip Size (mm)0.7874
Maximum Tip Size 1 Gun (cm)0.0787
Maximum Tip Size 1 Gun (mm)0.7874
Fluid Outlet Size (cm)0.635
Fluid Outlet Size (mm)6.35
Hose Inlet Diameter (cm)0.635
Hose Inlet Diameter (mm)6.35
Maximum Tip Size 2 Guns (cm)0.0584
Maximum Tip Size 2 Guns (mm)0.584
