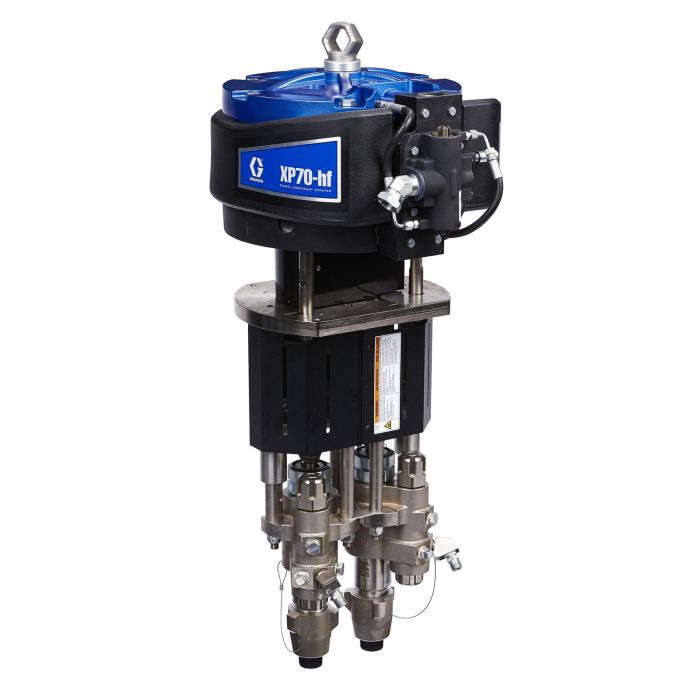

XP70-hf Hazardous Location Proportioning Pump Package, 1.5:1 Mix Ratio 572150

In stock
Quick Overview
Two-component spraying made easy and affordable.

All in-stock items will ship within 5-7 days. Any items affected by continuing supply chain issues will receive notifications.

Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.

High-pressure performance for two-part high-solids coatings.

  • Reduced material waste
  • No more throwing away unused mixed material at the end of the day
  • Save money by using less clean-up solvent
  • Consistent material quality - no more guesswork or human error in measuring materials
  • Easy to operate - minimal training required
  • Reduced maintenance costs
  • Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
More Information
Maximum Working Pressure (psi)7250
Maximum Operating Temperature (F)130
Maximum Fluid Temperature (F)160
Air Inlet Size (in)1
Fluid Inlet Size (in)37987
Fluid Outlet Size (in)43832
Maximum Air Inlet Pressure (psi)100
Maximum Air Pressure (psi)100
Maximum Hose Length (ft)300
Maximum Spray Pressure (psi)7250
Overall Depth (in)52
Overall Height (in)62
Overall Width (in)35
Weight (lb)320
Maximum Working Pressure (bar)500
Maximum Operating Temperature (C)54
Maximum Fluid Temperature (C)71
Maximum Working Pressure (kPa)50000
Overall Height (cm)157.5
Overall Height (mm)1575
Overall Depth (cm)132.1
Overall Depth (mm)1321
Overall Width (cm)88.9
Overall Width (mm)889
Weight (kg)145
Maximum Flow Rate (L/min)11.36
Maximum Air Inlet Pressure (bar)6.9
Maximum Air Inlet Pressure (kPa)690
Maximum Air Pressure (bar)6.9
Maximum Air Pressure (kPa)690
Maximum Hose Length (m)91.4
Maximum Spray Pressure (bar)500
Maximum Spray Pressure (kPa)50000
